The different types of packaging film rolls include polyethylene (PE), polypropylene (PP), polyester (PET), polyamide (PA), PVC, high-barrier laminates, and selected compostable films. For manufacturers using flexible packaging equipment, however, choosing the right roll involves more than identifying a plastic.
Your film must protect the product, form consistent seals, and travel reliably through the packaging machine. A material that looks suitable on a specification sheet may still wrinkle, slip, or produce weak seals during production.
At HLun Pack, our focus is packaging machinery and integrated packaging solutions. This guide takes a system-level approach: evaluate the product, film structure, and equipment together before committing to commercial production.

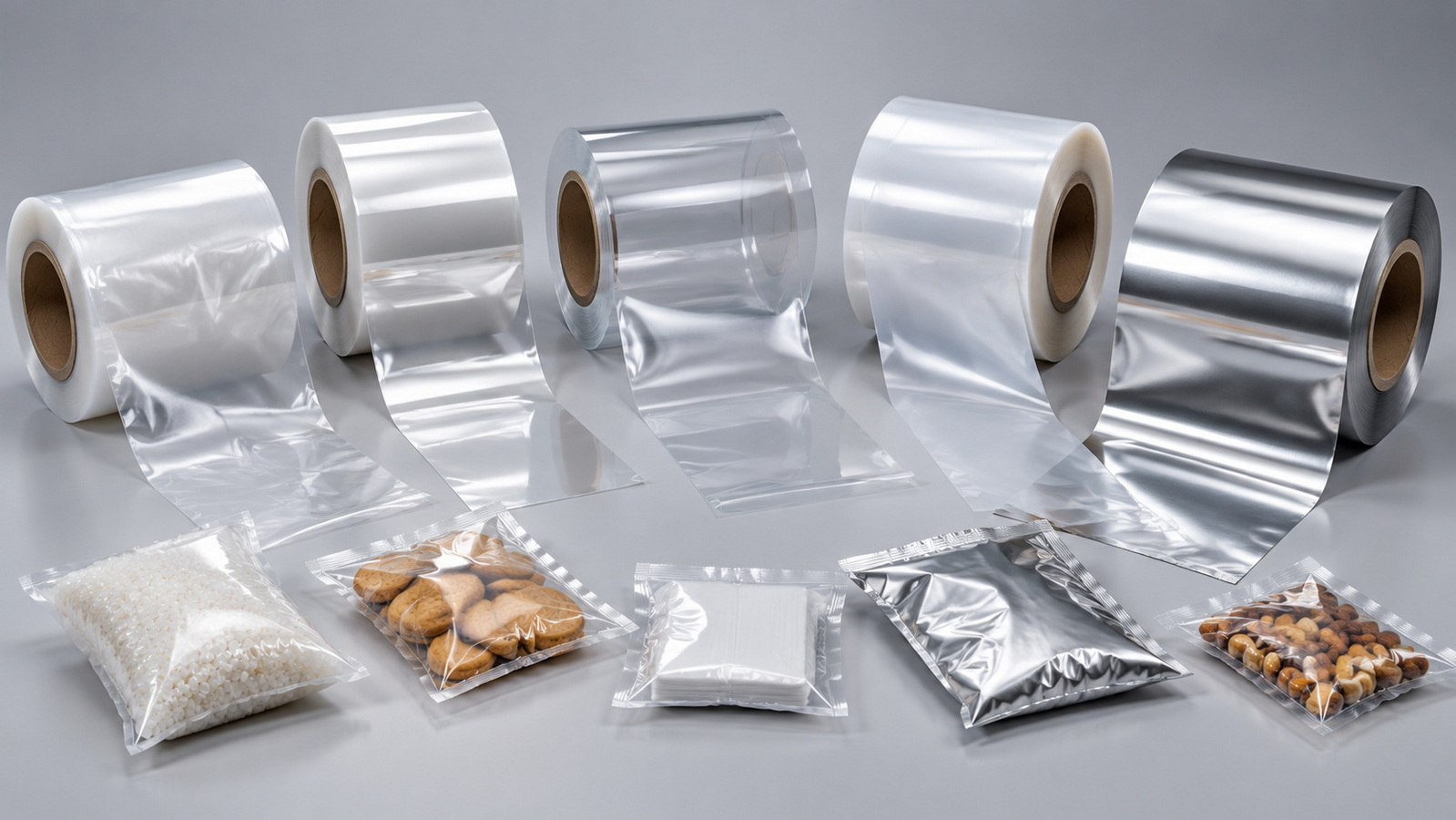

Packaging film rolls are continuous webs of flexible material wound around a core. Packaging equipment unwinds the material, forms it into a package, fills it, and seals it.
Typical applications include:
- Vertical form-fill-seal packaging for snacks, powders, and granules.
- Horizontal flow wrapping for bakery products and individual items.
- Sachet and stick-pack production.
- Thermoforming, vacuum packaging, and tray sealing with suitable films.
Rollstock can contain one polymer or multiple functional layers. It may be clear, printed, metallized, coated, or laminated.
The important distinction is between material identity and finished-film performance. Two films described as "PE-based" can have different stiffness, sealing behavior, and barrier properties.
Polyethylene is widely used for its flexibility, moisture resistance, and heat-sealing capabilities.
LDPE offers softness and flexibility. LLDPE is commonly incorporated where toughness and puncture resistance matter. HDPE provides greater stiffness than lower-density alternatives.
PE can serve as a standalone film or the product-contact sealant layer in a laminate.
Common applications include frozen foods, bags, selected liquid packaging, and protective wrapping.
Its main limitation is oxygen barrier. Standard PE should not automatically be selected for oxygen-sensitive products without additional barrier features and shelf-life validation.
Biaxially oriented polypropylene, or BOPP, offers clarity, stiffness, and moisture resistance. It is widely used in snack packaging and printed outer layers.
Cast polypropylene, or CPP, commonly provides a sealable layer in PP-based structures.
Do not assume all BOPP films heat-seal in the same way. Some require a sealable coating, coextruded skin, or separate sealant layer.
For machine selection, establish which film surfaces must seal together. Fin seals and lap seals may require different surface arrangements.
PET film provides dimensional stability, strength, and a useful printing surface. In flexible laminates, it commonly acts as the outer structural layer.
A PET/PE structure combines PET's support with PE's sealing function.
However, standard PET is not a universal high-barrier solution. Products sensitive to oxygen, moisture, or light may require coatings, metallization, foil, or another barrier layer.
Buyers should evaluate the complete laminate rather than attributing all package performance to its PET component.
Polyamide films are commonly considered where toughness, puncture resistance, and oxygen protection are important.
They appear in structures for vacuum packaging, meat products, cheese, and other demanding applications.
Nylon's barrier performance is affected by humidity. Consequently, a dry-condition data sheet may not represent actual distribution conditions.
PA is frequently combined with other materials that provide sealing and moisture protection. Thermoforming applications also require suitable forming behavior, not simply adequate film strength.
Metallized films contain a thin deposited metal layer, often on PET or BOPP. Aluminum foil laminates incorporate a separate foil layer.
Both can improve protection against oxygen, moisture, and light, but they are not interchangeable.
Examples include:
| Film structure | Typical purpose | Important qualification |
|---|---|---|
| BOPP/CPP | Dry-food packaging | Confirm sealability and required barrier |
| PET/PE | Printed general-purpose packaging | Validate oxygen-sensitive applications |
| PA/PE | Tough vacuum packaging | Check puncture and humidity performance |
| PET/metallized PET/PE | Enhanced barrier and light protection | Check flex durability and finished-pack integrity |
| PET/aluminum foil/PE | Demanding barrier applications | Control pinholes, flex damage, and sealing |
These structures are starting points, not universal recommendations. Layer grades, thicknesses, adhesives, and converting quality influence the final result.
PVC appears in selected cling and shrink applications. Other polymers, including PE and polyolefin blends, are also used for shrink wrapping.
Shrink film contracts when heated. Stretch film secures loads through stretching and elastic recovery.
Neither category should be confused with printed form-fill-seal rollstock. Although all arrive on rolls, they require different equipment and perform different packaging functions.
Specify the actual process before requesting a quotation.
Mono-material packaging generally emphasizes one polymer family, such as PE or PP, although functional coatings and other components may still be present.
These structures can support recycling-oriented design, but material composition alone does not establish local recyclability.
Compostable films represent a separate category. Selected PLA-, PHA-, or cellulose-based formulations may suit specific applications, but certification and performance vary.
"Bio-based," "biodegradable," and "compostable" are not equivalent claims. Confirm the disposal conditions and the suitability of the complete printed package.
Before comparing prices, identify what could make the product unacceptable:
- Moisture absorption and loss of crispness.
- Oxidation and flavor deterioration.
- Aroma loss or odor transfer.
- Light exposure.
- Puncture damage.
- Leakage or seal contamination.
A dry cracker and a refrigerated sauce do not need the same protection. Shelf-life targets, storage temperatures, and transport conditions should guide the specification.
Two key measurements are:
- Oxygen transmission rate, or OTR: how much oxygen passes through the material under defined conditions.
- Water vapor transmission rate, or WVTR: how much water vapor passes through under defined conditions.
Lower values indicate less transmission under the stated test conditions.
Always request the test method, units, temperature, relative humidity, and film thickness. Comparing values obtained under different conditions can produce misleading conclusions.
ASTM D3985 addresses oxygen transmission through plastic films and related structures. ASTM F1249 addresses water vapor transmission through flexible barrier materials.
Neither measurement alone establishes shelf life. Seals, residual oxygen, package geometry, and product characteristics also matter.
For food packaging, request documentation covering the intended food type, contact duration, and temperature conditions.
A film suitable for ambient dry foods may not be suitable for hot filling, fatty foods, or reheating.
The review should address relevant layers, inks, adhesives, and other components—not just the base resin. Requirements also depend on the destination market.
Compatibility should be established before ordering production quantities.

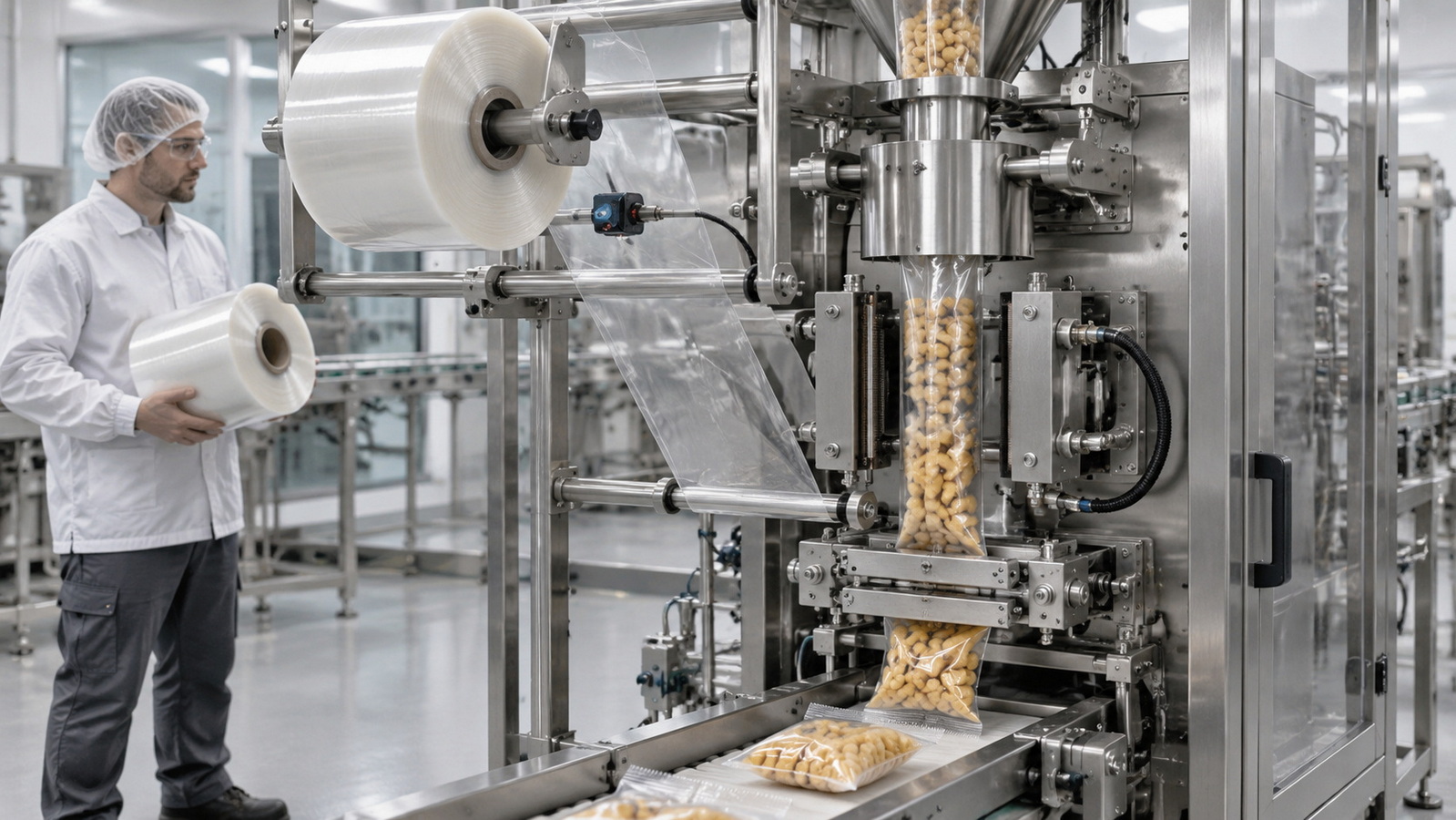

Provide your equipment supplier with the following information:
| Specification | Why it matters |
|---|---|
| Film width and thickness | Influences forming, tracking, and package dimensions |
| Maximum roll diameter and weight | Must match unwind capacity |
| Core inside diameter | Must fit the unwind shaft or chuck |
| Unwind direction and print orientation | Determines correct presentation |
| Print repeat and registration-mark position | Supports cutting and print alignment |
| Sealant side and seal configuration | Determines which surfaces must bond |
| Sealing window and hot-tack behavior | Helps establish reliable operating conditions |
| Coefficient of friction | Affects sliding, traction, and web handling |
| Splice details and winding quality | Influences continuity and tracking |
For vertical machines, forming-collar behavior and web tension deserve attention. Flow wrappers also require suitable longitudinal and end-seal performance.
When changing from a conventional laminate to a PE-rich structure, do not assume the existing recipe will transfer unchanged. Different stiffness and heat response may require adjustments.
Define the product, fill weight, package dimensions, shelf-life target, distribution conditions, and intended production speed.
Include the filling method. Dusty powders, oily products, and liquids create different sealing challenges.
Ask the film supplier to explain each layer's function.
Separate requirements for printing, stiffness, oxygen protection, moisture protection, puncture resistance, and sealing. This makes substitutions easier to evaluate.

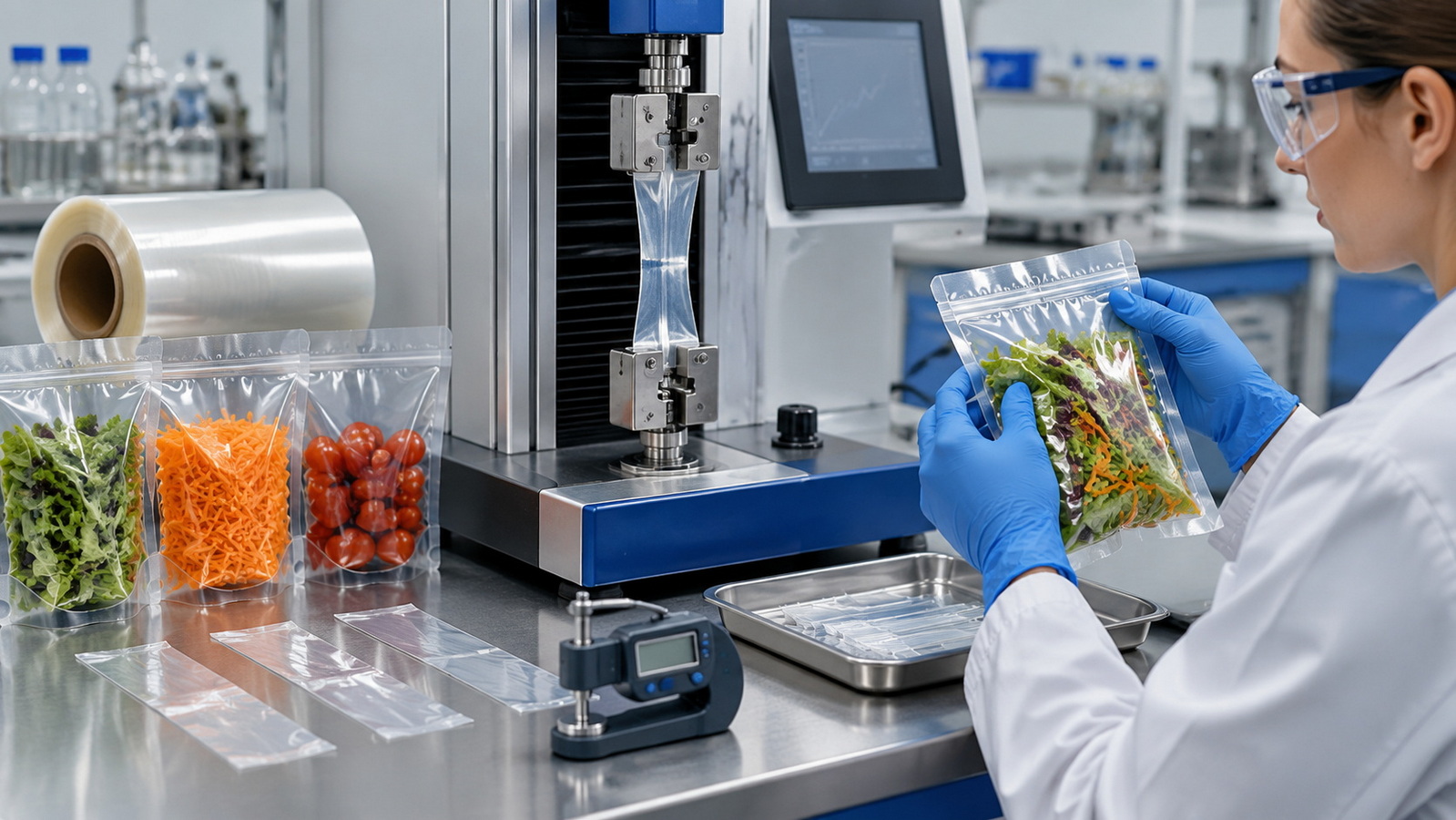

Test with the actual product and realistic operating conditions.
Evaluate normal startup, continuous running, stops, and restarts. A short empty-film demonstration does not establish reliable filled-pack performance.
Record machine settings so successful conditions can be reproduced.
Check package dimensions, registration, seal appearance, leakage, and opening behavior.
ASTM F88/F88M provides a method for measuring seal strength in flexible barrier materials. Seal-strength testing is useful, but it does not replace leak testing or product-specific package validation.
Where relevant, include distribution testing and shelf-life studies.
Document the approved structure, thickness tolerance, roll dimensions, winding direction, test conditions, and acceptance criteria.
Retain reference samples. Require notification before changes to materials, coatings, adhesives, or manufacturing processes that could affect performance.
For crackers or chips, begin with moisture protection and seal integrity. Products containing oxidation-sensitive fats may also need stronger oxygen protection.
A metallized laminate may be worth evaluating, but its suitability depends on the product and shelf-life target.
For products with hard edges or bones, puncture resistance can be as important as oxygen barrier.
Consider a suitable PA-containing structure, then verify vacuum retention, sealing, and resistance to damage during distribution.
For powdered products, evaluate moisture protection alongside contamination at the seal.
Changing film alone may not resolve leakage caused by product dust. Filling accuracy, settling time, sealing conditions, and machine cleanliness must be investigated together.
These examples illustrate selection logic rather than guaranteed material prescriptions.
Ask suppliers to separate three questions:
1. What is the package made from?
2. Does it meet a relevant design or certification requirement?
3. Can the intended customer actually access the required collection or treatment system?
A mono-material design does not guarantee collection. Industrial compostability does not establish home compostability.
Check the complete package, including inks, adhesives, labels, and closures. For food applications, recycled content also requires appropriate food-contact evaluation.
Specific, documented claims are more useful than broad statements such as "environmentally friendly."
The best packaging film roll is the one that meets the product's protection requirements while running consistently on the intended equipment.
HLun Pack focuses on flexible packaging machinery and integrated packaging solutions. To begin a practical equipment-and-film discussion, share your product details, target package format, existing film specification, output requirement, and destination market.
If available, include sample rolls and filled packages. These give the evaluation a concrete starting point and help identify what must be tested before production approval.
Film rolls are formed into packages during production. Premade pouches arrive already converted and typically require pouch-handling, filling, and sealing equipment. The two formats generally use different machine configurations.
There is no universal choice. PE, PP, PET, PA, and multilayer structures serve different functions. Select a complete structure based on food-contact suitability, product sensitivity, processing conditions, and validated shelf life.
No. Thickness can influence strength and stiffness, but greater thickness does not automatically solve oxygen transmission, poor sealing, or machine incompatibility. Compare the required performance rather than thickness alone.
Sometimes, but it requires evaluation. Film width, forming behavior, seal configuration, friction, registration, and sealing response must match each machine. Approval on one line does not establish suitability for another.
No. Nitrogen flushing can reduce oxygen present during packing, but oxygen may subsequently enter through the material or imperfect seals. Film barrier, package integrity, and residual oxygen must be considered together.
No. Actual recyclability depends on the complete package and local collection, sorting, and reprocessing systems. Claims should reflect the markets where the packaged product is sold.
1. YLTPACK — "What Are the Different Types of Packaging Film Rolls?" Published March 5, 2024. Original article reviewed for its material categories, selection guidance, and content gaps. [yltpacking]
2. Institute of Food Technologists — "Better Oxygen and Grease/Oil Barriers, Longer Life." Discussion of polymer barrier behavior, metallization, and environmental influences on oxygen permeability. [ift]
3. Institute of Food Technologists — "Advanced Sterilization Technologies Unwrap Packaging Potential." Discussion of multilayer packaging, EVOH, polyamide, and barrier coatings. [ift]
4. ASTM International — "ASTM D3985-24: Standard Test Method for Oxygen Gas Transmission Rate Through Plastic Film and Sheeting Using a Coulometric Sensor." Basis for the oxygen-transmission testing discussion. [astm]
5. ASTM International — "ASTM F1249-20: Standard Test Method for Water Vapor Transmission Rate Through Plastic Film and Sheeting Using a Modulated Infrared Sensor." Basis for the moisture-transmission testing discussion. [astm]
6. Intertek — "Water Vapor Transmission Rate (WVTR), ASTM F1249." Explanation of test conditions and the effects of thickness, temperature, and relative humidity. [intertek]
7. ASTM International — "ASTM F88/F88M-21: Standard Test Method for Seal Strength of Flexible Barrier Materials." Basis for the distinction between seal-strength measurement and broader package validation. [astm]
8. U.S. Food and Drug Administration — "Food Packaging & Other Substances That Come in Contact with Food: Information for Consumers." Background on food-contact substances and recycled-material assessment. [fda]
9. U.S. Food and Drug Administration — "U.S. FDA Food Contact Regulatory Overview," hosted by NASA. Explanation of intended-use restrictions, including food type and temperature conditions. [nasa]
10. Federal Trade Commission — "Guides for the Use of Environmental Marketing Claims," 16 CFR Part 260. Guidance on substantiating and qualifying recyclable, compostable, and recycled-content claims. [ecfr]
11. ProAmpac — "High-Performance Mono PE Recyclable Film." Industry example of engineering PE-based alternatives for form-fill-seal applications; not evidence that every mono-material film is a direct replacement. [proampac]
