Views: 237 Author: Tom Publish Time: 2026-09-24 Origin: Hlunpack
Product | High-acid hot & sour sauce; acidity described by the customer as comparable to mature vinegar-type products. |
Original failure | Delayed seepage/leakage appeared about 24–48 hours after filling rather than immediately on the packaging line. |
Thermal process | 121°C retort sterilization. |
Small format | Three-side-seal sachet line at approximately 80 packs/min; priority: high-speed, contamination-resistant sealing and post-retort seal integrity. |
Commercial format | 500g commercial four-side-seal pouch at approximately 10–15 packs/min; priority: higher structural strength, seal-load resistance and transport durability. |
Technical direction | PET / AL / BOPA / RCPP as a development starting point, with retort-grade adhesive and process validation under the customer’s actual cycle. |

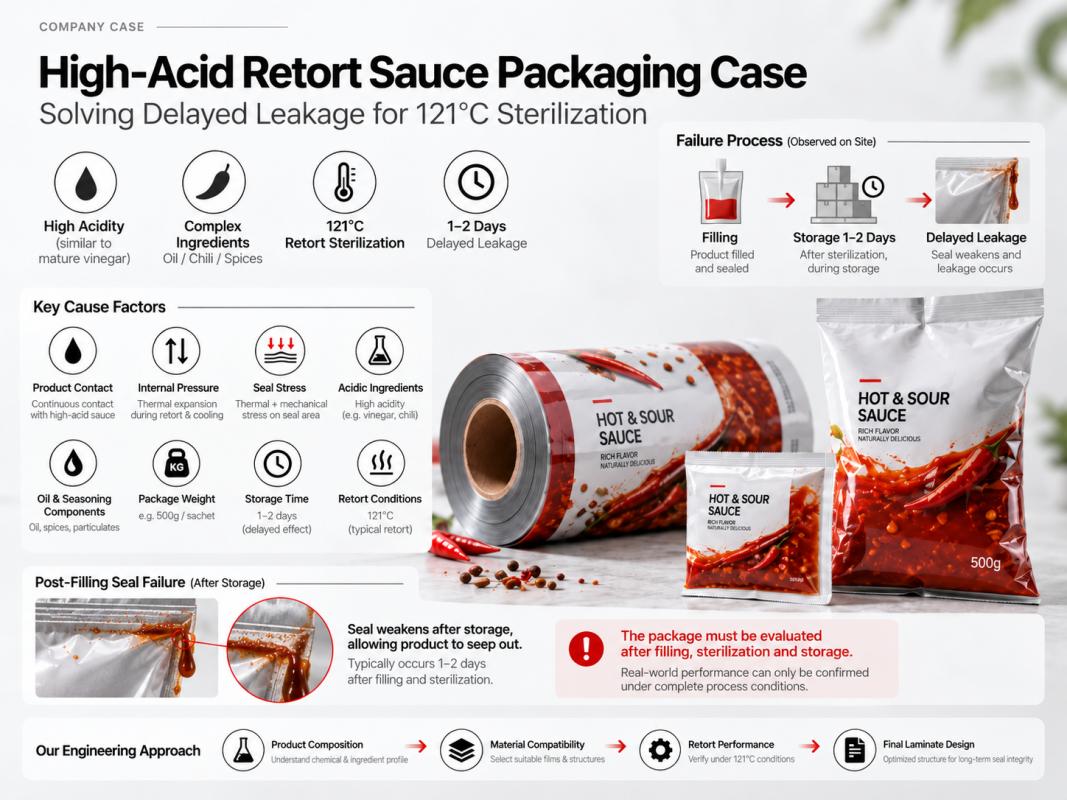

The customer’s previous packaging did not show obvious leakage immediately after production. Instead, seepage appeared after the filled packs had been stored for approximately 1–2 days.
This distinction matters. The issue was not simply an immediate sealing failure; it was delayed leakage or post-filling seal failure. A pouch can look normal when it leaves the machine and still lose integrity later under the combined effect of product contact, internal pressure, seal stress, acidic ingredients, oil and seasoning components, package weight, storage time and retort conditions.
For this reason, the packaging had to be evaluated as a complete post-filling system—not only at the moment the sealing jaws or rollers closed.
The customer described the sauce as having acidity comparable to mature vinegar-type products. However, acidity alone does not prove that a sealant layer has been “corroded.” The more important engineering question is whether the complete laminate is compatible with the actual formulation and thermal process.
• Organic acids and actual measured pH
• Salt and oil content
• Chili, spices and solid particles
• Filling temperature and product viscosity
• 121°C retort temperature, holding time and pressure/counter-pressure profile
• Cooling conditions and required shelf life
Engineering principle
Product Composition → Material Compatibility → Retort Performance → Final Laminate Design
Once 121°C retort sterilization is required, this is no longer a standard sauce-film application. The laminate must maintain seal integrity, interlayer adhesion, barrier performance and dimensional stability while it is exposed to high temperature, moisture, internal pressure and acidic contents.
• The sealant must remain reliable after retort, not only before retort.
• The adhesive system must be retort grade and fully cured before the thermal process.
• Barrier layers must retain integrity through heating, pressure changes and cooling.
• The printing/ink system must be compatible with the laminate and retort process.
For this project, a four-layer retort laminate is a technically appropriate development starting point. The final specification still has to be confirmed against the customer’s measured pH, retort cycle, bag dimensions and machine conditions.
Layer | Primary Function | Why It Matters Here |
PET | Print surface, dimensional stability, heat resistance | Provides a stable outer layer during printing, converting and retort handling. |
AL | High oxygen/moisture barrier and light protection | Adds a strong barrier safety margin for an aromatic, high-acid sauce requiring retort processing. |
BOPA | Toughness, puncture and flex-crack resistance | Supports packages containing particles and improves mechanical durability, especially in the heavier commercial format. |
RCPP | Food-contact sealant and retort-grade heat sealing | Must maintain seal integrity after 121°C sterilization and subsequent cooling/storage. |
Development starting point — not a final specification Small sachet: PET12 / AL7–9 / BOPA15 / RCPP60–80 μm can be used as an initial trial range. 500g commercial four-side-seal pouch: PET12 / AL9 / BOPA15 / RCPP80–100 μm may provide additional mechanical margin. Final thickness must be verified against pouch dimensions, seal width, retort cycle, drop/transport conditions and the customer’s actual machine. | ||
The three-side-seal sachet line runs at approximately 80 packs/min. At this speed, the available sealing time is relatively short, so the laminate must balance fast seal formation with retort-grade post-sterilization seal strength.
• High-speed seal stability under the customer’s actual temperature, pressure and contact time
• Contamination-resistant sealing when sauce, oil or fine particles enter the seal area
• A practical sealing window that supports stable production without excessive heat
• Seal strength that remains reliable after 121°C retort and cooling
Hot & sour sauce is a liquid or semi-liquid product containing oil, chili and seasoning particles. At high packaging speeds, even a small amount of product in the seal area can create incomplete fusion or microchannels. The pouch may look acceptable at first, but the weak path can become visible only after hours of storage.
Important distinction
For an 80 packs/min retort sachet, “seals on the machine” is not enough. The target is: high-speed sealing + contamination tolerance + post-retort seal integrity.

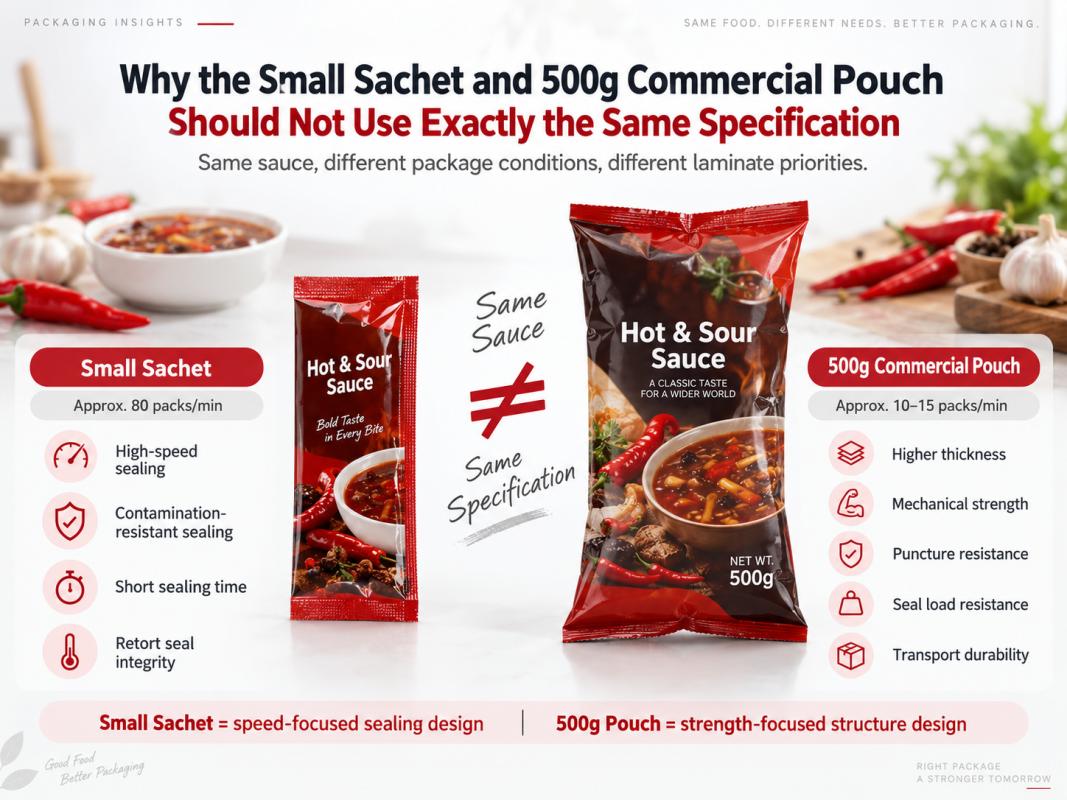

The customer’s 500g commercial format runs at approximately 10–15 packs/min and uses a four-side-seal pouch. Here, machine speed is not the main engineering challenge. The dominant issues are product weight, four-side seal loading, retort stress and transportation durability.
• 500g product weight continuously loads the film and seals.
• Retort heating and cooling add thermal and pressure-related stress.
• Carton packing, stacking, vibration and handling add mechanical stress after production.
• The commercial pack therefore requires a higher total thickness and stronger mechanical margin than the small sachet.
Design Factor | Small Sachet | 500g Commercial Four-Side-Seal Pouch |
Line speed | ~80 packs/min | ~10–15 packs/min |
Primary challenge | Short sealing cycle | Product weight and mechanical load |
Seal focus | Contamination resistance + post-retort integrity | High seal-load resistance |
Mechanical focus | Adequate flexibility for high-speed forming | Higher thickness + puncture/flex-crack strength |
Design priority | Speed-focused sealing system | Strength-focused laminate structure |
A retort pouch cannot be evaluated only by naming the film layers. The adhesive system, curing conditions and interlayer bond are part of the package performance. For a high-acid, oily and seasoned sauce exposed to 121°C, the lamination system must be designed for retort service and fully cured before filling and sterilization.
• Use a retort-grade adhesive system appropriate for the selected film combination.
• Control adhesive ratio, coating, curing time and curing temperature according to the adhesive supplier’s retort recommendation.
• Confirm compatibility between inks, adhesive and reverse-printed PET construction.
• Evaluate the laminate after the actual retort and cooling cycle, not only before processing.
A delayed leak is not only a single-pouch defect. Once sauce and oil contaminate the carton, adjacent packs can be stained, labels and corrugated board can be damaged, and exposed product can create a spoilage risk. This is why package integrity has to be considered at carton and shipment level as well as at individual pouch level.
The following values are necessary before the laminate can be treated as a final production specification. The structure above is a development direction, not a universal formula for every acidic sauce.
• Actual measured pH and type/concentration of acid
• Oil, salt, solids and spice content
• Filling temperature and headspace condition
• Exact 121°C retort holding time, pressure/counter-pressure and cooling profile
• Sachet and 500g bag dimensions, seal width and net fill weight
• Target shelf life and distribution environment
• Actual sealing temperature, pressure/contact time and machine sealing geometry
Technical boundary statement for publication
Final laminate selection must be confirmed against the customer’s measured product parameters and actual retort process. This case describes the engineering direction and design logic; it should not be presented as a one-structure-fits-all formula.
01 High-acid sauce + 24–48 h delayed leakage | 02 121°C retort requirement | 03 80 packs/min sachet vs. 500g commercial four-side-seal pouch | 04 PET / AL / BOPA / RCPP + retort-grade lamination | 05 Validate under actual product + machine + retort cycle |
The customer’s visible symptom was simple: sauce began to seep from the package after one to two days. The underlying engineering problem was more complex because the product was highly acidic, the packs had to survive 121°C retort sterilization, and the two package formats operated under very different machine and load conditions.
For the approximately 80 packs/min sachet, the design priority is high-speed, contamination-resistant sealing that remains reliable after retort. For the 500g commercial four-side-seal pouch running at approximately 10–15 packs/min, the priority shifts toward higher total thickness, four-side seal strength, mechanical durability and transport reliability.
A PET / AL / BOPA / RCPP retort laminate is therefore a strong development direction, but final material selection must be confirmed with the customer’s measured pH, actual formulation, retort cycle and machine parameters.
A structure such as PET / AL / BOPA / RCPP can be used as a development starting point because it combines printability, barrier, mechanical reinforcement and a retort-grade sealant. The exact structure and thickness must still be validated for the product and process.
Delayed leakage can be associated with microchannels, seal contamination, product compatibility, seal stress, package weight, lamination stability and thermal processing. The failure location and actual process conditions should be checked before assigning a single root cause.
The sachet is dominated by short sealing time and contamination-resistant high-speed sealing, while the 500g four-side-seal pouch is dominated by product weight, seal load, puncture resistance and transport durability.
No. Actual pH, acid type, oil and salt content, filling temperature, retort conditions, package size, shelf-life target and machine sealing conditions all influence the final laminate.
