Choosing the right packaging seal is one of the most important decisions in flexible packaging design. A seal does more than close a pouch or bag: it protects product quality, prevents leakage, supports shelf life, enables safe transport, and shapes the customer's first experience with the product.
At HLun Pack, we work with manufacturers that need packaging machinery and integrated packaging solutions for powders, granules, liquids, snacks, coffee, pet food, frozen products, and other flexible-packaging applications. In real production environments, the "best" seal is not simply the strongest one. It is the seal that remains consistent at target speed, works with the selected film structure, tolerates product contamination where necessary, and delivers the required opening experience.
A packaging seal is the bonded or closed area that keeps a package securely shut. In flexible packaging, seals are usually formed by heat, pressure, ultrasonic energy, adhesive, or a mechanical closure such as a zipper, cap, or slider.
A well-engineered seal must balance several requirements:
- Leak resistance for liquids, sauces, oils, and wet products
- Seal strength for heavy products, rough handling, and long transport routes
- Product protection against moisture, oxygen, contamination, and odor transfer
- Opening performance for easy-open, peelable, or resealable packaging
- Line efficiency at the desired output speed
- Material compatibility with the film, laminate, coating, or container
- Consumer confidence through clean appearance and tamper evidence
For flexible packaging, seal integrity is often the weakest point in the total package system. A high-barrier film cannot protect a product if its seal channel leaks, if product is trapped in the seal area, or if sealing parameters drift during production.

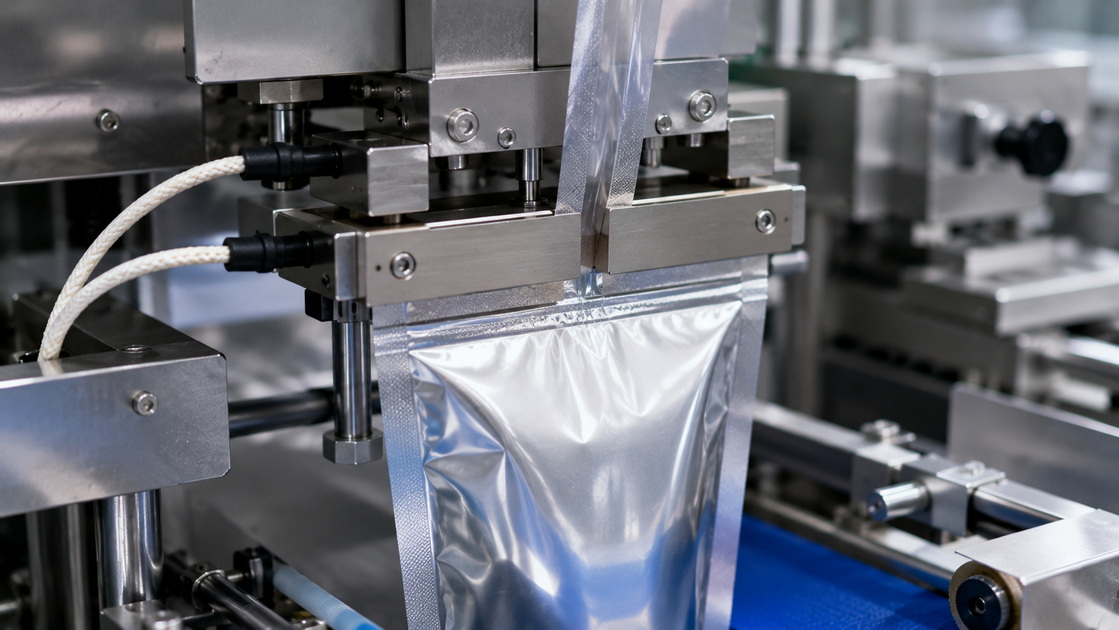

Heat sealing is the most widely used sealing method for flexible packaging. It uses controlled temperature, pressure, and dwell time to fuse compatible sealant layers together.
It is commonly used for:
- Stand-up pouches
- Pillow bags
- Sachets and stick packs
- Frozen-food bags
- Coffee and snack packaging
- Liquid and sauce pouches
- Medical and hygiene packs
In practice, three variables determine thermal seal quality:
1. Temperature must activate or melt the sealant layer without damaging the outer film.
2. Pressure must be even across the entire jaw face.
3. Dwell time must allow sufficient heat transfer and polymer bonding.
If any variable is unstable, the result may be weak seals, burn-through, wrinkling, incomplete seals, or inconsistent peel performance.
Cold sealing uses a pressure-sensitive cohesive adhesive rather than heat. The coated areas bond when pressed together, making this method suitable for products that can be affected by heat.
Cold seals are often used for:
- Chocolate bars
- Candy and confectionery
- Cereal bars
- Bakery products
- Heat-sensitive medical or personal-care products
The major advantage is high production speed without thermal exposure. However, cold-seal materials require careful storage, registration control, and adhesive compatibility testing.
Ultrasonic sealing uses high-frequency vibration to generate localized heat directly at the sealing interface. Unlike conventional heat sealing, ultrasonic systems can often displace small amounts of powder, crumbs, or product residue from the seal zone.
This makes ultrasonic sealing useful for:
- Powder pouches
- Snack packaging
- Granular products
- Coffee packs
- Sachets with difficult seal areas
- High-speed packaging lines
For products that create frequent seal contamination, ultrasonic technology can improve seal consistency and reduce product giveaway caused by rejected packs. However, it still requires compatible materials, proper horn-and-anvil design, and application testing.
Induction sealing is commonly used for bottles and jars rather than flexible pouches. An induction sealer uses electromagnetic energy to bond a foil liner to the container opening.
It is widely used for:
- Nutritional supplements
- Sauces and condiments
- Beverages
- Pharmaceuticals
- Cosmetics
- Chemical products
Induction seals provide strong tamper evidence and help reduce leakage. They are typically used with a cap or closure system, not as a standalone closure.
Vacuum sealing removes air from the package before the final seal is made. This can reduce oxidation and help preserve food quality, depending on the product, material barrier, and storage conditions.
Typical applications include:
- Meat and seafood
- Cheese
- Coffee
- Nuts
- Ready meals
- Dried foods
Vacuum packaging requires reliable seals because even a small leak can allow air back into the package and reduce the intended shelf-life benefit.
Adhesive-based seals use glue, hot melt, or pressure-sensitive adhesive. Tape seals use carton tape, security tape, or tamper-evident tape.
These methods are most common for:
- Shipping cartons
- E-commerce boxes
- Retail boxes
- Secondary packaging
- Labels and sleeves
They are generally not the primary solution for high-barrier flexible food packaging, but they remain important in complete packaging systems.
Mechanical closures include:
- Zippers
- Sliders
- Spouts and caps
- Snap lids
- Clips
- Hook-and-loop closures
These features improve convenience after first opening. For example, a stand-up pouch for pet food may use a heat-sealed top for first-use protection and a zipper below it for resealing.
Important: A zipper improves consumer convenience, but it should not automatically be treated as the primary hermetic seal. The package still needs a secure top seal before purchase.

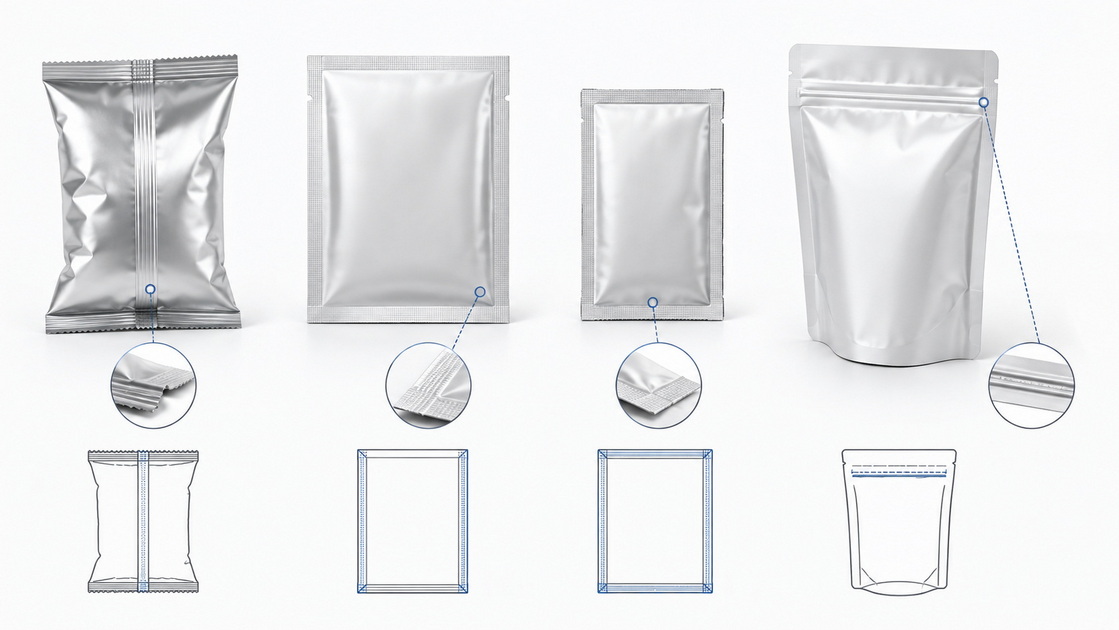

A sealing method describes how a package is closed. A seal structure describes where and in what configuration the seal appears on the package.
| Seal structure | How it is formed | Typical applications | Key advantage |
|---|---|---|---|
| Fin seal | Two film edges meet face-to-face and are sealed | Flow packs, pillow bags | Strong, visible longitudinal seal |
| Lap seal | One film edge overlaps another before sealing | Snack bags, VFFS packs | Can reduce material use |
| Back seal | Longitudinal seal placed on the rear panel | Pillow bags, sachets | Clean front-facing package appearance |
| Side seal | Seals placed along package sides | Flat pouches, medical packs | Simple, reliable pouch format |
| Bottom seal | Seal positioned at the bottom of a bag | Bags and some pouches | Supports product weight |
| Three-side seal | Three edges sealed, one edge used for filling | Powders, samples, sauces | Efficient flat pouch format |
| Four-side seal | All four edges sealed | Sachets, wipes, single-dose packs | Uniform appearance and precise format |
| Gusset or stand-up pouch seal | Bottom or side gussets create volume | Pet food, coffee, snacks | Shelf presence and larger capacity |
A good seal structure should support the product weight, filling method, display requirement, opening direction, and machinery configuration.
The correct packaging seal should be selected through a structured evaluation—not by copying a competitor's package or choosing the lowest-cost machine configuration.
Ask these questions first:
- Is the product a powder, granule, liquid, solid, paste, or frozen item?
- Can it contaminate the seal area?
- Is it heat-sensitive?
- Does it require oxygen, moisture, or aroma protection?
- Is it sharp, abrasive, oily, or heavy?
- Does it need a long shelf life?
- Will consumers use the product once or repeatedly?
For example, a protein powder pouch may need a strong heat seal or ultrasonic support because powder in the seal area can cause channels. A sauce pouch needs reliable leak resistance and a film structure designed for liquid pressure. A snack pouch may prioritize high-speed production, attractive fin-seal appearance, and easy opening.
Seal performance depends on the full material structure—not only the machine.
Typical flexible structures may include combinations of:
- PET
- BOPP
- PE
- CPP
- Nylon
- Aluminum foil
- Metallized film
- Paper-based laminates
- Recyclable mono-material films
The inner sealant layer must be compatible with the selected sealing method. Before mass production, test the actual film on the actual equipment at expected production speed.
Products with demanding shelf-life requirements may need more than a basic closure. They may require:
- High-barrier film
- Vacuum packaging
- Modified-atmosphere packaging
- Tamper-evident features
- Accurate temperature control
- Controlled sealing conditions
- Leak and seal-strength validation
For food-contact packaging, manufacturers must also ensure that materials and package systems meet applicable regulatory requirements for their intended market. In the United States, food-contact substances are regulated by the FDA.

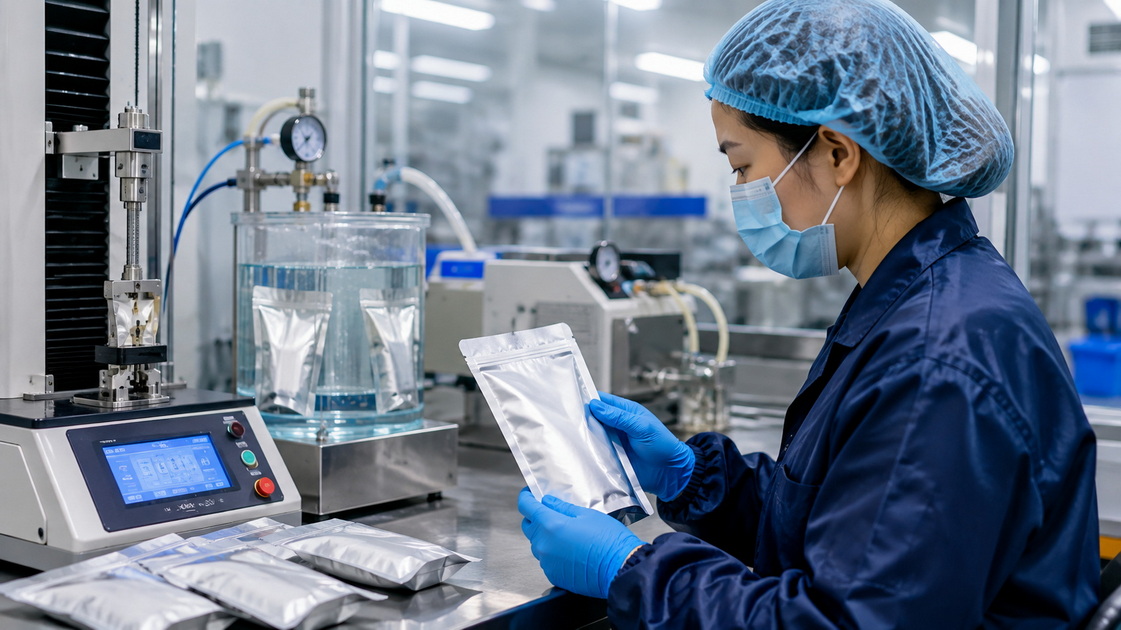

A package may look properly sealed but still fail under pressure, transport vibration, product contamination, or temperature changes. For this reason, seal validation should be part of both product development and routine quality control.
Operators should check for:
- Wrinkles in the seal area
- Product trapped in the seal
- Burn-through or film distortion
- Uneven seal width
- Misaligned film
- Incomplete end seals
- Contamination or residue on sealing jaws
Visual inspection is fast, but it cannot identify every microleak.
ASTM F88/F88M is a widely recognized test method for measuring the seal strength of flexible barrier materials. It measures the force required to separate a sealed test strip and can help identify how the seal fails.
This matters because a package should not only have a high peak strength. It should also have an appropriate failure mode:
- A peelable seal should open predictably without tearing the package.
- A permanent seal should resist opening during transport and normal use.
- A material tear may indicate that the seal bond is stronger than the film itself.
- A clean adhesive failure may be desirable for some easy-open designs but unacceptable for heavy-duty packs.
Common leak-testing approaches include:
- Bubble emission testing
- Vacuum decay testing
- Pressure decay testing
- Dye penetration testing
- Helium tracer-gas testing
The appropriate method depends on the package type, product risk, target sensitivity, and quality-control requirements. Seal-integrity testing helps verify whether packaging can provide the intended product protection.
For thermal sealing lines, establish a documented operating window for:
- Sealing-jaw temperature
- Pressure
- Dwell time
- Machine speed
- Film tracking
- Cooling time
- Jaw cleanliness
- Product fill timing
A practical preventive-maintenance routine should include checking jaw surfaces, replacing worn non-stick coverings or silicone pads, verifying film alignment, and comparing displayed temperature with actual jaw-surface temperature.
| Seal problem | Likely cause | Practical corrective action |
|---|---|---|
| Weak or open seal | Low temperature, low pressure, short dwell time | Verify sealing window and inspect jaw contact |
| Burned film or brittle seal | Excessive heat or dwell time | Reduce temperature or dwell time and validate strength |
| Product in seal area | Poor fill timing, dust, crumbs, powder migration | Improve dosing control; consider ultrasonic sealing |
| Wrinkled seal | Film tracking issue, uneven jaws, poor tension | Align film path and check jaw parallelism |
| Leaking liquid pouch | Inadequate seal width, contamination, unsuitable film | Review pouch design, sealant layer, and process parameters |
| Uneven seal strength | Dirty jaws, worn pads, inconsistent pressure | Clean jaws and inspect wear components |
| Poor easy-open performance | Incorrect peel-seal material or process setting | Test peel behavior and adjust material/process combination |
In our packaging-equipment work, one recurring lesson is clear: seal performance cannot be solved by the sealer alone.
The outcome is shaped by the interaction of:
- Product characteristics
- Film structure
- Pouch or bag design
- Filling accuracy
- Sealing technology
- Machine settings
- Operator control
- Quality-testing methods
For example, increasing heat may appear to solve a weak seal. But if the true cause is powder contamination or uneven jaw pressure, higher temperature may only burn the film and create more rejects. The right approach is to identify the root cause and validate the complete packaging system.
That is why HLun Pack recommends trial testing with representative product, packaging material, target pack size, and expected line speed before final equipment selection.
The right packaging seal helps protect your product, reduce leakage and waste, improve shelf appearance, and keep your packaging line running efficiently. Whether you need a pouch packaging machine, sachet packaging system, vacuum packaging solution, heat sealing equipment, or a complete flexible packaging line, the equipment should be matched to your product and packaging goals.
Talk to HLun Pack about your product, pouch format, film structure, filling requirements, and output target. Our team can help you evaluate sealing methods and build an integrated packaging solution for more stable production.
The main types include heat seals, cold seals, ultrasonic seals, induction seals, vacuum seals, adhesive seals, tape seals, and mechanical closures such as zippers, caps, lids, and sliders. Heat sealing is the most common method for flexible pouches, bags, sachets, and film packaging.
Heat sealing uses externally heated jaws plus pressure and dwell time to bond packaging layers. Ultrasonic sealing uses high-frequency vibration to generate localized heat at the sealing interface. Ultrasonic sealing can be useful when powder, crumbs, or moisture make conventional sealing less reliable.
A fin seal is a raised longitudinal seal formed when two film edges meet face-to-face and are sealed together. It is commonly used in pillow bags and flow-wrap packaging. Compared with a lap seal, it is more visible but can offer a strong and consistent package seam.
The best option depends on powder behavior, film type, pouch format, and production speed. Heat sealing is common, but powder contamination can weaken seals. Ultrasonic sealing may be a strong option when product particles frequently enter the seal zone. Testing with the real product and film is essential.
Start by checking temperature, pressure, and dwell time. Then inspect sealing jaws, film tracking, jaw parallelism, product contamination, and fill timing. Use visual inspection plus appropriate seal-strength and leak testing to confirm that the adjustment improves real package performance.
ASTM F88/F88M is a standard test method used to measure the strength of seals in flexible barrier materials. It evaluates the force needed to separate a test strip containing a seal and helps identify the failure mode.
No. In most flexible-packaging designs, the zipper provides consumer convenience after opening, while the top heat seal provides the primary unopened-package closure and tamper evidence. Both features should be designed and tested as part of the complete package.
