Views: 222 Author: HLun PACK Publish Time: 2026-04-15 Origin: Site
A dieline is the technical blueprint that turns a flat paperboard sheet into a functional, on‑brand package—and if you work with paper packaging or packaging machinery, getting dielines right will make or break your production efficiency and print quality. [globalvision]
In packaging and print, a dieline is a 2D design template that outlines the exact layout of a box, sleeve, pouch, label, or insert in its flattened form. It marks where the packaging will be cut, folded, perforated, and glued so that the final structure assembles correctly and fits the product as intended. [supremex]
For anyone using paper packaging or running automated packaging lines, a dieline is the key file that connects creative design, structural engineering, and your converting or filling machinery into one coherent workflow. [pakfactory]
From my experience working with brands and packaging converters, well‑engineered dielines deliver three critical benefits:
- Accurate fit and protection
A precise dieline ensures internal dimensions match your product, avoiding loose fit, crushing, or bulging that can jam machines or damage goods. [econo-pak]
- Print and branding consistency
Your artwork aligns correctly with panels, edges, and openings, so logos, colors, and claims appear exactly where you expect on every single unit. [refinepackaging]
- Efficiency on packing lines
Correctly built dielines run more smoothly on folder‑gluers, case packers, and cartoners, minimizing misfeeds, rework, and unplanned stoppages. [jamestowncontainer]
In short, the dieline is where design ambition meets manufacturing reality: treat it as a production asset, not just a design file. [cefbox]

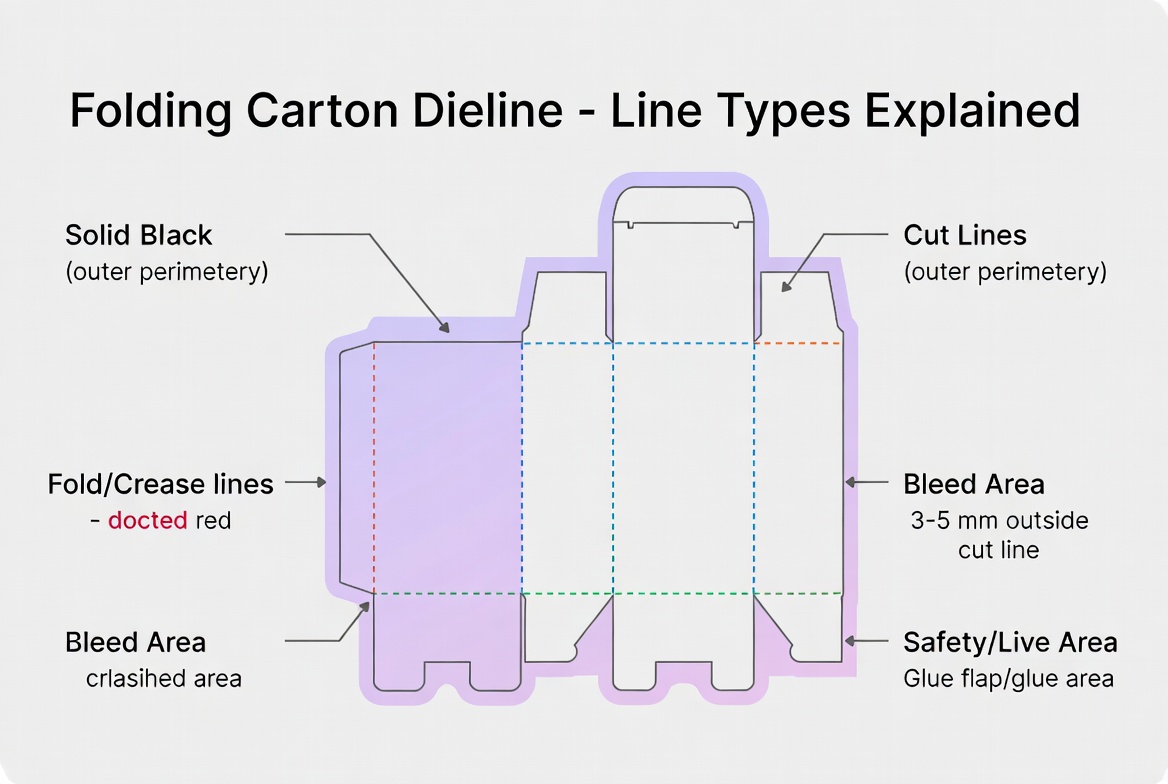

Most professional packaging dielines use a standard visual language so designers, printers, and machine operators can read them quickly. [ppdandg]
- Cut (trim) lines
Solid black lines show where the die‑cutting tool will cut the material, defining the final outer shape of the packaging. [globalvision]
- Fold (crease) lines
Solid red lines indicate where the board will be creased and folded to form edges and panels. [packccp]
- Perforation lines
Black dotted or dashed lines mark tear‑off areas, opening features, or easy‑open sections in the structure. [refinepackaging]
- Bleed lines
Solid green lines define the bleed area—typically about 0.125 inch (3 mm) beyond the cut line—to avoid unwanted white edges after trimming. [pakfactory]
- Safety (margin) lines
Green dotted lines indicate the safe zone where important elements like logos and text must remain to avoid being cut off or distorted. [flexiblepouches]
- Glue tabs and seal areas
Shaded or cross‑hatched zones mark where adhesive is applied to close or reinforce the package. [ppdandg]
A good dieline does much more than show where to cut and fold; it underpins the entire design‑to‑production process. [jamestowncontainer]
Before you approve artwork, your team can use the dieline to:
- Check panel alignment, copy positions, and barcode placement
- Verify legal text and regulatory icons sit inside the safe zone
- Confirm structural details (tuck flaps, crash‑lock bottoms, inserts) match your product and machinery specs
Multiple revision rounds at this stage prevent costly misprints and structural failures on press or line. [cefbox]

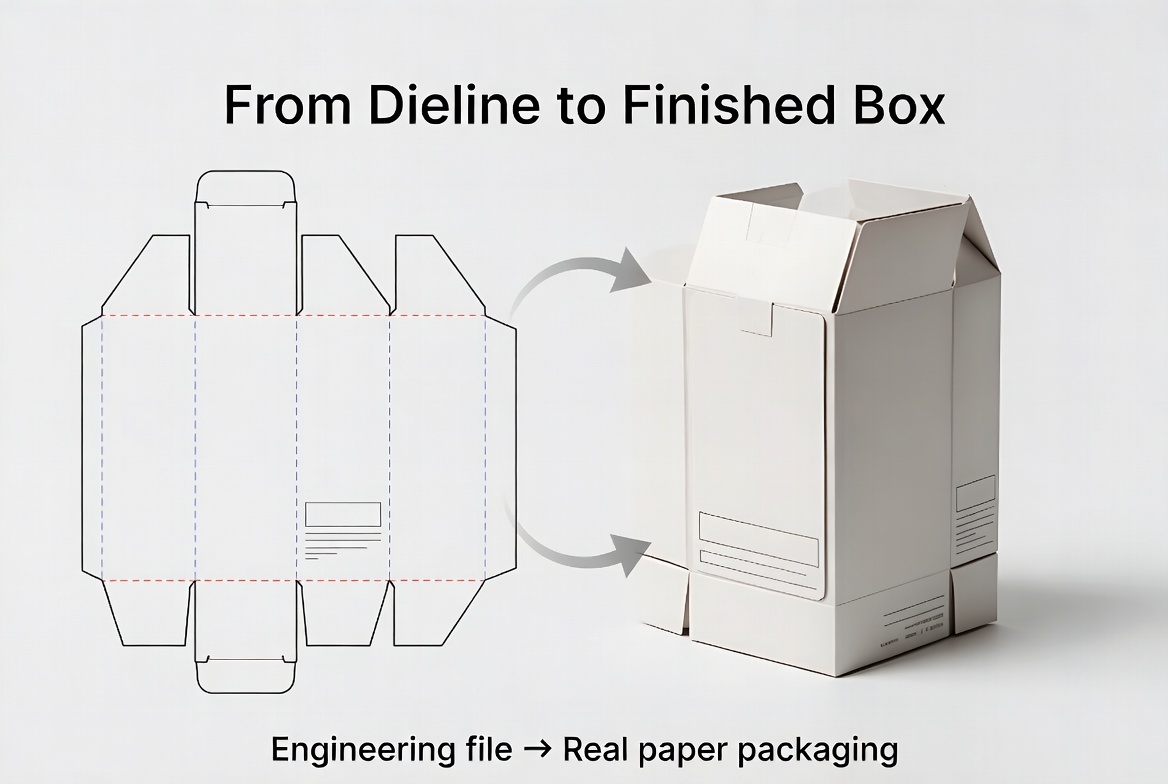

Importing a finalized dieline into 3D software (for example, Pacdora or Esko Studio) gives you a realistic view of how the pack will look once assembled and filled. This 3D view reveals issues that are easy to miss in 2D, such as hidden copy on flaps, awkward opening behavior, or poor shelf impact at typical viewing angles. [flexiblepouches]
Once printed, your board or paper passes through a die‑cutting process where a custom metal die plate—essentially a giant cookie cutter—follows the dieline precisely. Correct dielines ensure clean cuts, accurate scores, and predictable folding behavior on automated folder‑gluers and cartoners. [tycoonpackaging]
Before mass production, most converters produce physical prototypes based on the dieline so you can test:
- Product fit and protection
- Shelf appearance and unboxing experience
- Performance on existing packaging and filling machinery
Catching issues at the prototype or line‑trial stage is far cheaper than troubleshooting in full‑scale production. [globalvision]
Even if your converter or packaging partner supplies dielines, understanding the process helps you brief more effectively and avoid rework. [refinepackaging]
- Structural CAD tools (recommended)
Professional software like ArtiosCAD is designed specifically for structural packaging, taking into account board thickness, strength, and converting constraints. [pakfactory]
- Vector artwork software
Tools such as Adobe Illustrator are ideal for graphics and layout but are not optimal for generating complex 3D‑aware structures from scratch. [flexiblepouches]
- Online template platforms
For standard box styles, libraries on platforms like Pacdora provide ready‑made dieline templates and 3D previews. [globalvision]
Start from your product's dimensions, then define:
- Internal dimensions of the finished package (L × W × H)
- Board thickness and material type (influences fold behavior and strength)
- Tolerances needed for machine erecting, loading, and closing
If you already have a similar box running well on your line, providing that sample gives designers a practical benchmark to adapt. [cefbox]
Your dieline should clearly include:
- Cut, fold, perforation, bleed, and safety lines
- Glue tabs and glue‑free zones
- Registration marks and color bars (for press)
- Manufacturing notes (grain direction, opening orientation, machine infeed side)
Clarity here reduces interpretation errors among prepress, die‑making, and converting teams. [ppdandg]
For commercial printing and die‑cutting, save dielines as editable vector files (PDF or AI) in CMYK color mode. If you build the structure in ArtiosCAD, export to AI so designers can place artwork directly on the structural file with all guides and markers intact. [refinepackaging]

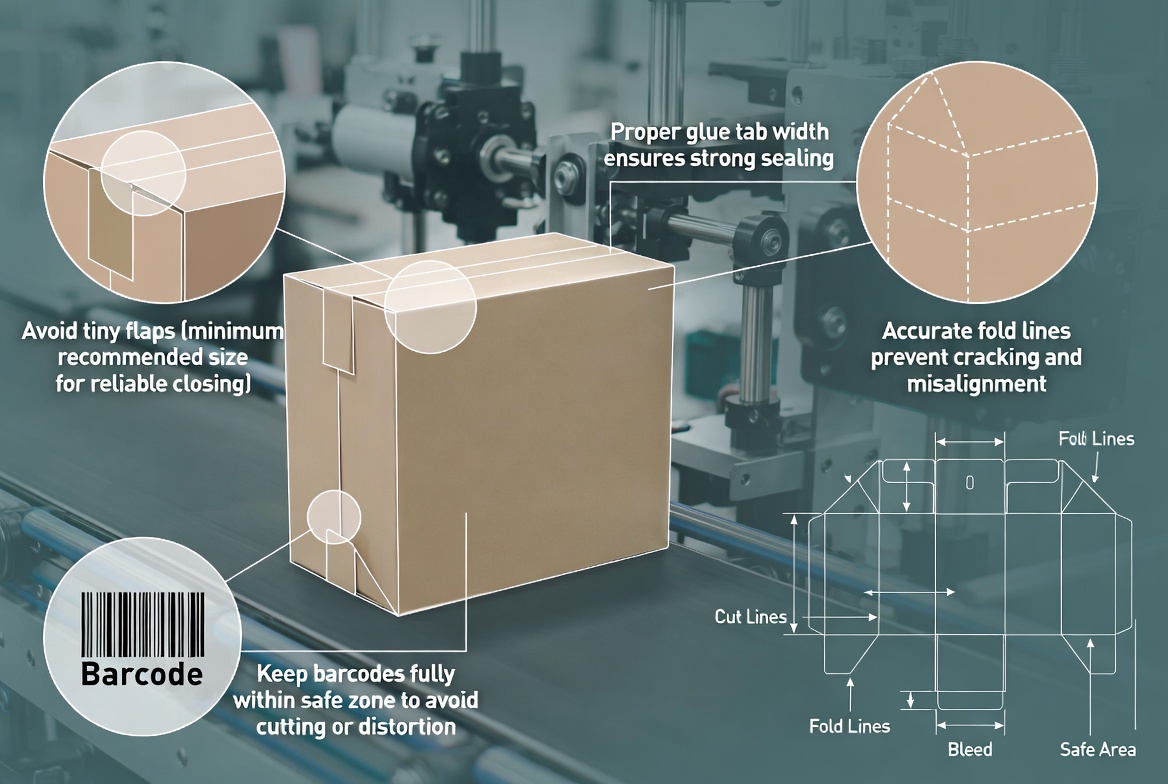

Drawing on real projects for paper packaging and integrated packaging lines, several best practices dramatically improve runnability and quality:
- Design with machinery in mind
Avoid overly complex locks, extremely small flaps, or tight reverse folds that may cause jams or misfeeds on high‑speed lines. [econo-pak]
- Respect minimum panel and flap sizes
Ensure flaps are large enough for glue applicators and compression belts to work reliably, especially on auto‑bottom or crash‑lock cartons. [econo-pak]
- Keep critical graphics away from folds and edges
Reserve at least a few millimeters between fold lines and key branding or legal text, even inside the safe zone. [packccp]
- Specify realistic tolerances
Account for material movement, press stretch, and die‑cutting tolerances so your package still works when everything is slightly off from ideal. [packccp]
- Standardize line colors and nomenclature
Use a consistent legend across all dielines (for example: black cut, red fold, green bleed, dotted safety) so internal teams and suppliers can interpret files instantly. [pakfactory]
Even experienced teams can run into issues if dielines are rushed or treated as a formality. [cefbox]
- Missing or insufficient bleed
Artwork that stops at the trim line often leads to thin white edges after cutting—always extend backgrounds to the bleed line. [packccp]
- Text or barcodes too close to edges
Copy outside the safe zone is at high risk of being cut, folded, or warped; keep these elements comfortably inside margin lines. [ppdandg]
- Inconsistent panel orientation
If designers and machinery teams view front/back differently, branding can end up inverted or misaligned on shelf—align orientation early in the dieline. [jamestowncontainer]
- Creating structures in non‑structural software
Building complex folding cartons purely in Illustrator without structural logic increases the chance of fit and assembly issues. [globalvision]
- Skipping physical or digital prototyping
Approving directly from a flat PDF risks discovering fit or line‑compatibility problems only after plates and dies are made. [pakfactory]

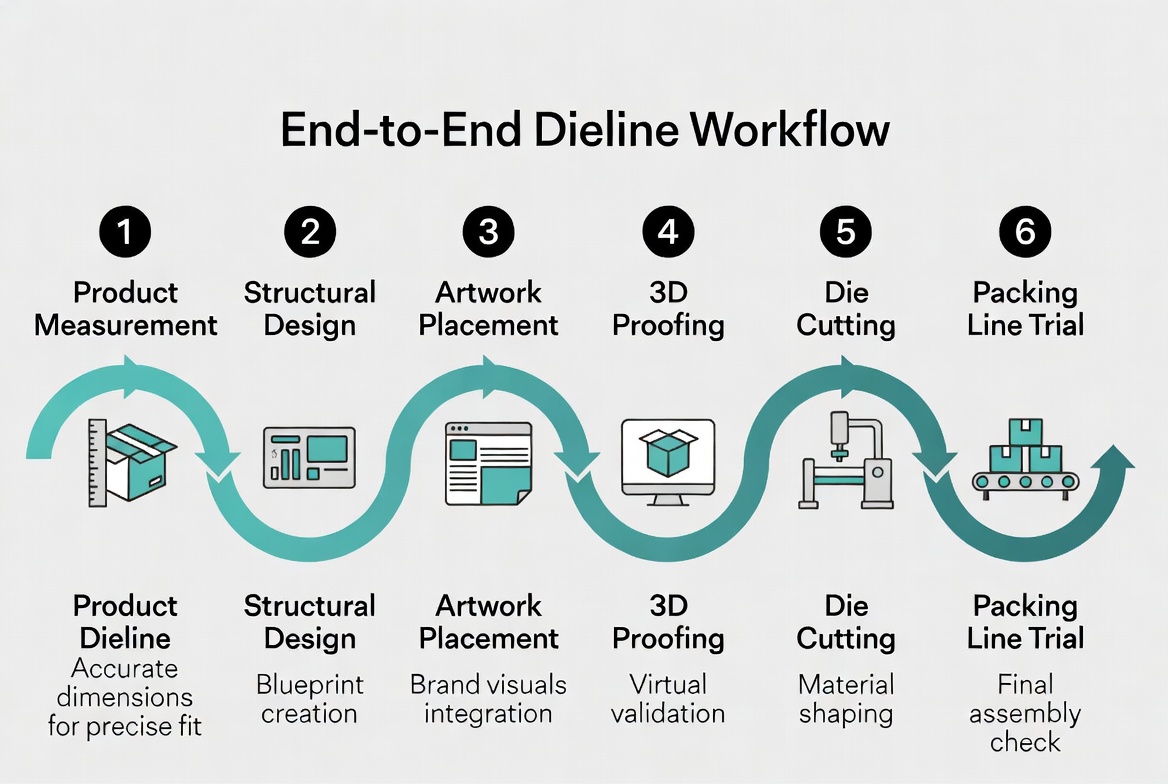

If you oversee packaging but are not a structural designer, here is a simple working sequence you can follow with your partners:
1. Define product and machinery constraints
Gather product dimensions, weight, stacking requirements, and details of your current filling/packing equipment. [econo-pak]
2. Request or adapt a proven style
Ask your converter for an existing, similar dieline that runs well, and adjust dimensions rather than inventing a completely new structure. [cefbox]
3. Align on legends and file formats
Confirm line colors, naming conventions, and final deliverables (for example: CAD file + AI with layers for dieline, artwork, and notes). [ppdandg]
4. Place artwork carefully
Have your designer work directly on the supplied dieline, staying within bleed and safety guides and respecting panel boundaries. [flexiblepouches]
5. Review in 3D and on paper
Use 3D previews and printed mockups to verify appearance, opening experience, and machine‑friendliness. [globalvision]
6. Run a trial before full rollout
Test the new pack on your packing line and gather feedback from operators before committing to large volumes. [econo-pak]
This process turns the dieline into a collaborative tool connecting design, production, and operations instead of an afterthought. [pakfactory]
For brands working with paper packaging and automated packaging equipment, partnering with a supplier that understands both packaging structures and machinery behavior is crucial. [jamestowncontainer]
As a dedicated paper packaging and packaging equipment manufacturer, HLun Pack can:
- Help you translate product and line requirements into optimized dielines for folding cartons and related structures
- Validate that your dielines are compatible with your current or planned packaging machinery
- Provide structural suggestions to improve speed, reduce waste, and enhance consumer opening experience
When you treat the dieline as an engineered asset and pair it with the right packaging partner, you unlock consistent quality, better shelf impact, and smoother operations end‑to‑end. [refinepackaging]
Share your current dielines or packaging challenges so your engineering team can review them and suggest optimizations for both structure and machine performance.
1. What is the difference between a dieline and a template?
A dieline is a technical template tailored to a specific structure, material, and production process, while a generic template is usually a starting point that still needs engineering refinement. [luckycolorpackaging]
2. Who is responsible for creating packaging dielines?
Typically a structural packaging designer, converter, or manufacturer creates the dieline, although brand owners often review and approve it for fit, branding, and line performance. [supremex]
3. Can I design my own dieline in Adobe Illustrator?
You can sketch simple layouts in Illustrator, but for reliable production—especially on automated lines—structural CAD tools and experienced packaging engineers are strongly recommended. [cefbox]
4. How do dielines affect printing cost?
Poorly optimized dielines can increase waste, require more complex dies, and reduce layout efficiency on press sheets, all of which raise material and printing costs. [refinepackaging]
5. How often should I update or redesign my dielines?
You should revisit dielines when you change product dimensions, materials, packaging machinery, or branding, or when you see recurring quality or line performance issues. [jamestowncontainer]
