As the global demand for ready meals, soups, sauces, pet food, and medical nutrition products continues to grow, commercial sterilization has become an essential process for extending shelf life while ensuring food safety. Packaging is no longer expected to simply survive high temperatures—it must maintain sealing integrity, barrier performance and appearance throughout sterilization, transportation and long-term storage.
Compared with traditional metal cans and glass jars, retort pouches offer significant advantages including lightweight construction, faster heat transfer, lower transportation costs and superior printing quality. As a result, they have become one of the fastest-growing flexible packaging formats worldwide.
According to industry market research, the global flexible packaging market is expected to maintain steady growth over the coming years, with high-temperature retort packaging representing one of the fastest-growing segments, driven by the expansion of ready-to-eat food and shelf-stable meal markets.
One of the most common questions from food manufacturers is:
“Our pouches perform perfectly during filling, but after 121°C retort sterilization they begin to delaminate, wrinkle or even leak. Why?”
In most cases, packaging failure is not caused by a single material, but by the combined effects of laminate structure, adhesive performance, sealing design and sterilization conditions.
Typical failures include:
* Delamination at pouch corners
* Seal deformation or seal failure
* Blistering
* Wrinkled pouch appearance
* Vacuum leakage
* Reduced barrier performance
These issues not only affect product appearance but may also shorten shelf life and increase the risk of packaging failure during transportation.

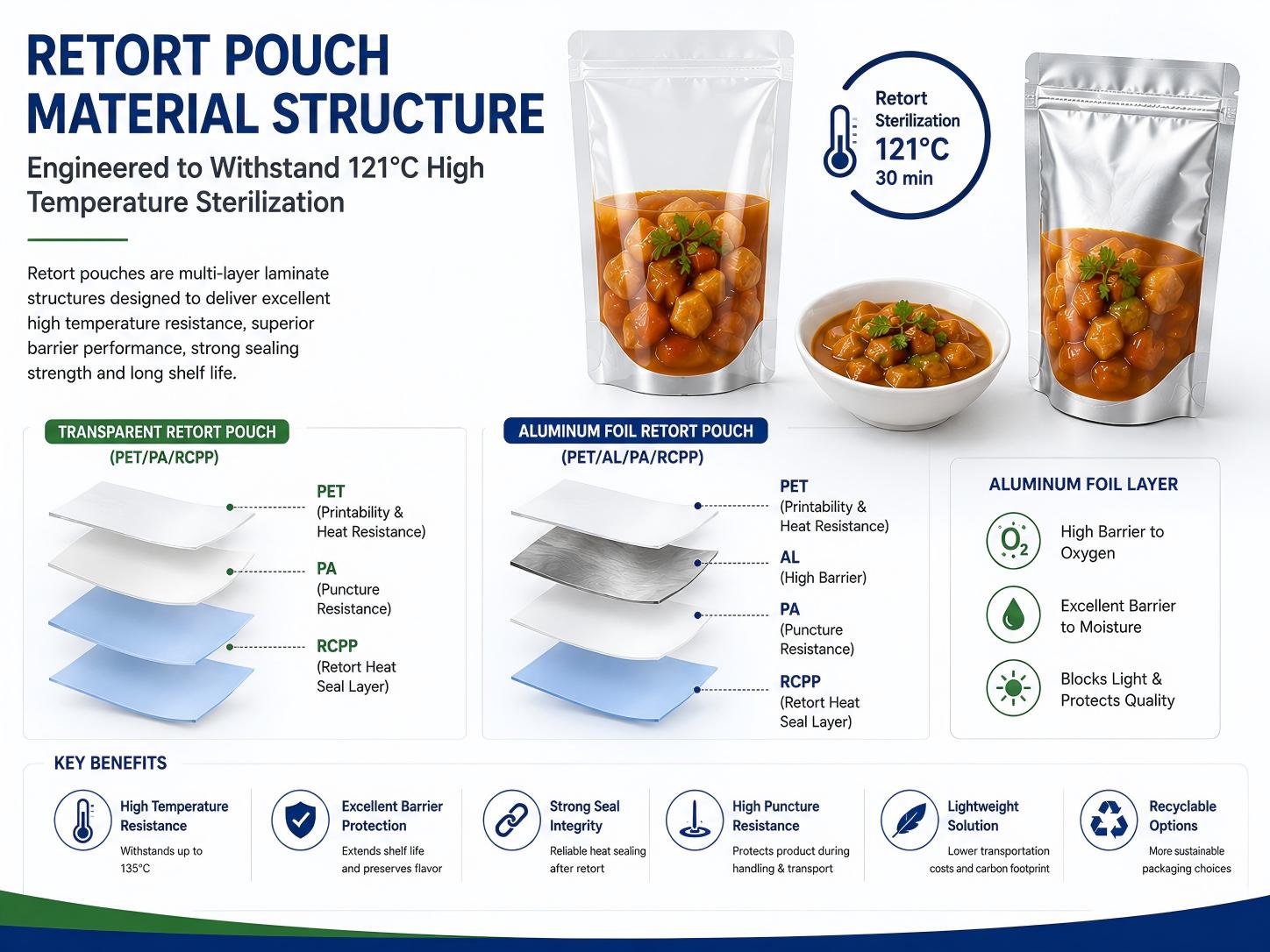

Many people believe that using Retort CPP (RCPP) alone is sufficient for high-temperature applications.
In reality, a reliable retort pouch is a carefully engineered multilayer laminate where every layer contributes to the final performance.
PET / PA / RCPP
* PET – Excellent printability and heat resistance
* PA (Nylon) – High puncture and impact resistance
* RCPP – Retort-grade sealing layer with superior heat seal retention
PET / AL / PA / RCPP
The aluminum foil layer provides exceptional protection against oxygen, moisture and light, making it ideal for products requiring extended shelf life.
However, material selection alone does not determine success.
Packaging stability also depends on:
* Retort-grade polyurethane adhesive
* Lamination quality
* Curing conditions
* Heat seal layer thickness
* Seal width design
* Bag-making process
* Sterilization and cooling profile
Even identical material structures may perform differently under different manufacturing conditions.
Food engineers rarely focus on temperature alone.
Instead, commercial sterilization is validated using the F₀ Value, which represents the equivalent sterilization effect at 121.1°C.
Packaging design must therefore consider:
* Product viscosity
* Filling temperature
* Package dimensions
* Product pH
* Heat penetration characteristics
* Sterilization time
* Cooling conditions
For example, a thick curry sauce transfers heat much more slowly than a clear broth, meaning the required sterilization profile—and therefore the packaging requirements—can differ significantly.

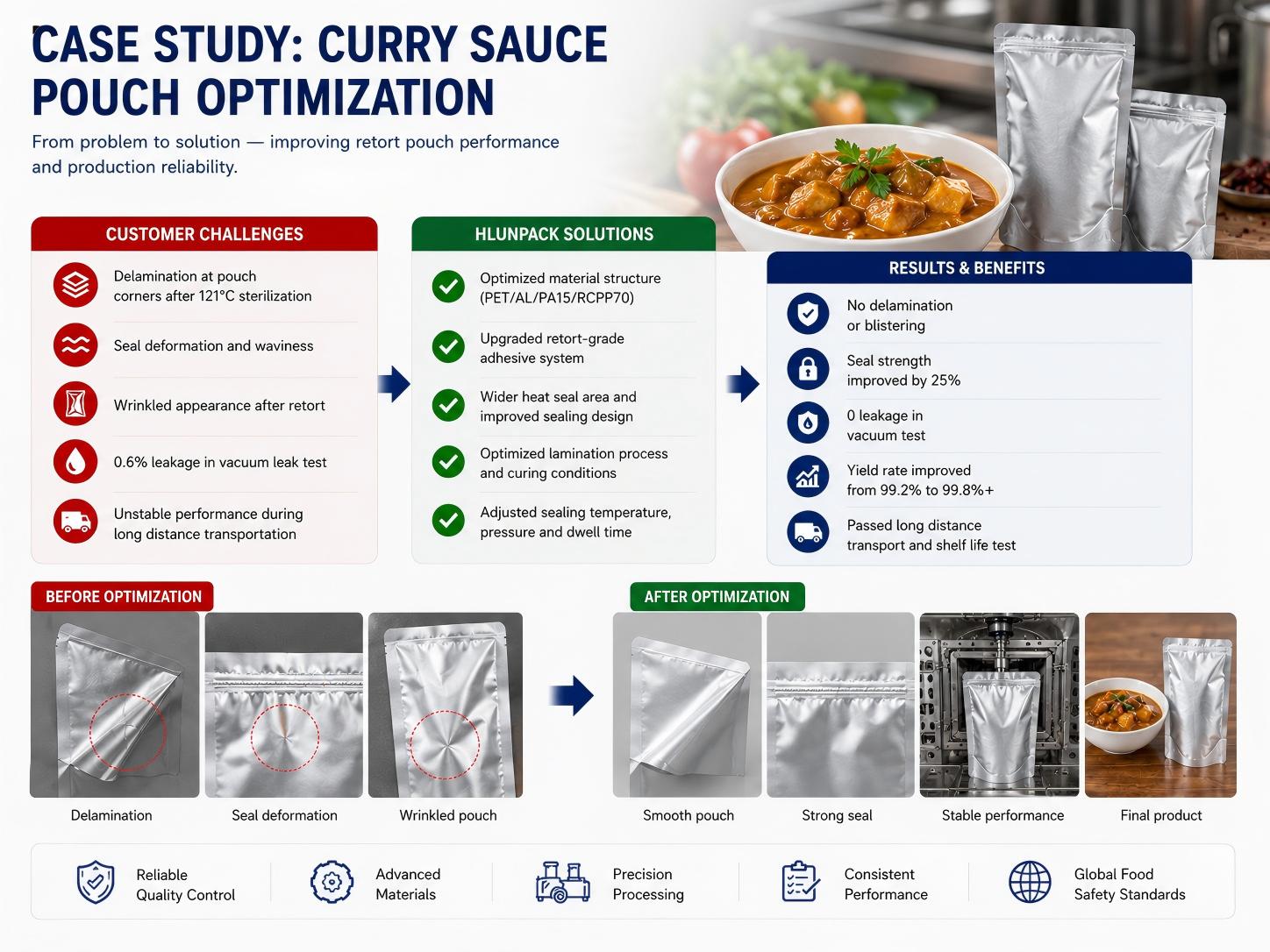

Improving Retort Pouch Performance for Exported Curry Sauce
A food manufacturer supplying ready-to-eat curry sauces and cooking sauces to European and Southeast Asian retail markets was using 121°C commercial steam sterilization for 30 minutes after automatic filling.
As production volumes increased, the customer began experiencing packaging failures during continuous production.
After sterilization, several quality issues became apparent:
Delamination Around Folded Corners
Localized delamination appeared near pouch corners and folded edges after sterilization. Although leakage did not occur immediately, the customer was concerned about package reliability during long-distance ocean transportation.
Some pouches exhibited slight seal distortion after retort processing, reducing shelf appearance and creating inconsistent sealing performance.
Following sterilization and cooling, certain pouches developed noticeable wrinkles, affecting retail presentation.
Random vacuum leak testing identified a leakage rate of approximately 0.6%, exceeding the customer’s internal quality requirements for export products.
After overseas shipment simulation, several pouches showed weakened seal performance around corner areas caused by thermal stress accumulated during sterilization.
After receiving production samples, HLunPACK’s engineering team carried out a comprehensive evaluation covering:
* Product formulation and viscosity
* Filling temperature
* Pouch dimensions
* Seal width
* Heat sealing parameters
* Laminate peel strength
* Adhesive performance
* Sterilization profile
* Cooling process
The analysis confirmed that the issue was not related to a single material, but rather the combined effects of laminate structure, sealing design and processing parameters.
To improve long-term packaging reliability, several optimizations were implemented.
The laminate structure was redesigned to improve heat resistance, dimensional stability and puncture resistance.
A dedicated polyurethane adhesive designed for commercial retort applications was selected, together with optimized curing conditions to improve interlayer bonding strength.
Seal width and sealing layer thickness were optimized according to the customer’s automatic packaging equipment to increase heat seal retention after sterilization.
Bag-making parameters—including sealing temperature, pressure and dwell time—were adjusted to produce more uniform sealing quality while reducing stress concentration around pouch corners.
Following three consecutive commercial production trials, the customer achieved significant improvements.
* Stable pouch appearance after sterilization
* No visible delamination or blistering
* Consistent seal strength
* Zero leakage during vacuum testing
* Improved performance during automatic filling and packing
* Packaging yield increased from approximately 99.2% to over 99.8%
* Successfully passed long-distance transportation and shelf-life validation
The optimized packaging solution now supports reliable commercial production while meeting the customer’s export quality standards.
HLunPACK specializes in high-performance flexible packaging solutions for commercial sterilization applications.
Our product range includes:
* Stand-up Retort Pouches
* Three-Side Seal Retort Pouches
* Four-Side Seal Retort Pouches
* Spouted Retort Pouches
* Vacuum Retort Bags
* Retort Rollstock Films
We work closely with customers to optimize:
* Material structure selection
* Lamination systems
* Heat sealing performance
* Sterilization compatibility
* Packaging stability
* Shelf-life requirements
By combining advanced material engineering with precision manufacturing, HLunPACK helps food manufacturers achieve safer, more reliable and export-ready packaging solutions.
As the global ready-to-eat food market continues to expand, retort packaging is evolving beyond simple material selection. Future success depends on integrating advanced material science, lamination technology, sealing performance and quality control into a complete packaging system.
HLunPACK remains committed to developing high-performance retort pouch solutions that improve food safety, production efficiency and long-term packaging reliability for customers worldwide.
